A/C service units

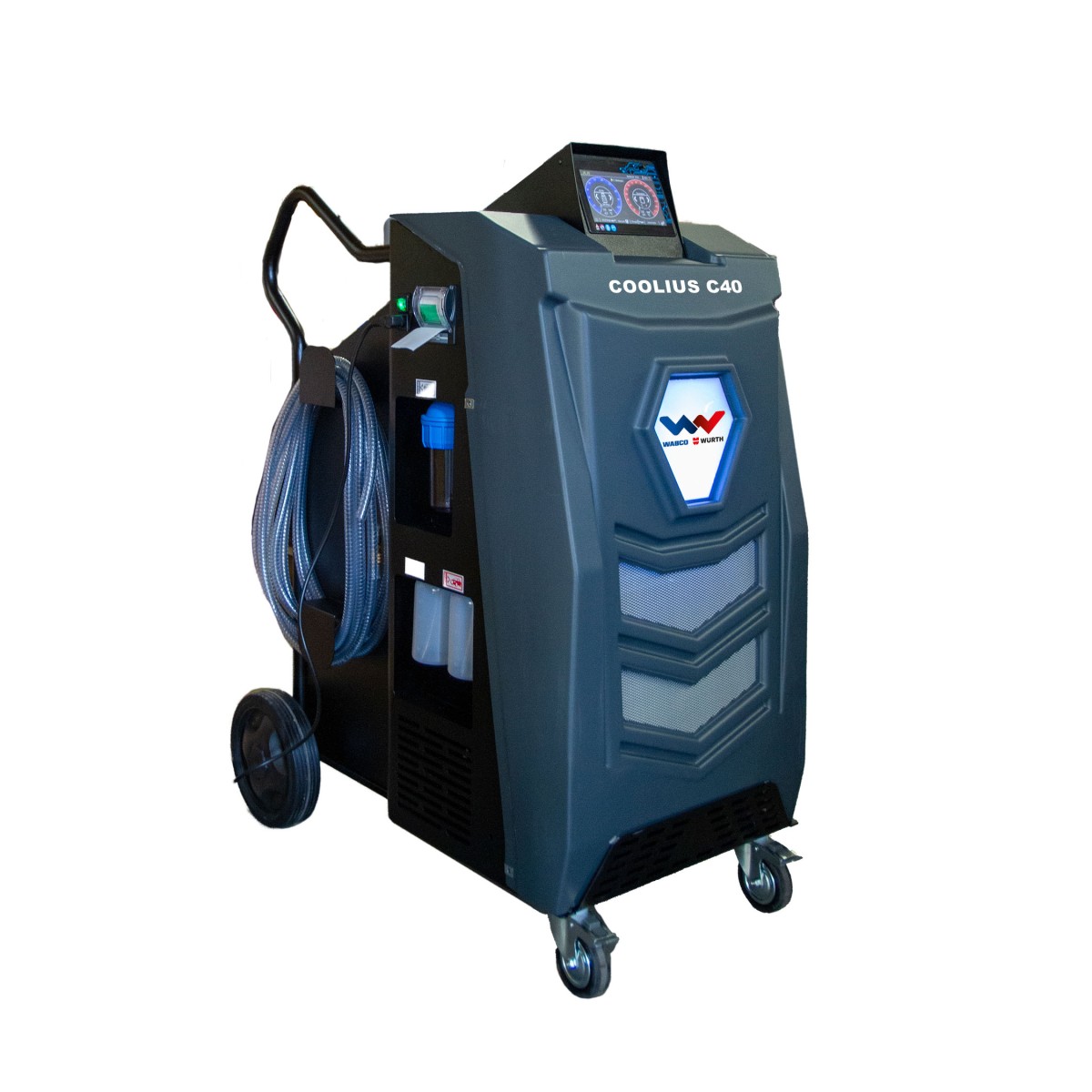

COOLIUS C40
Fully automatic system for simple & reliable maintenance of large-volume CO2 air conditioning systems.
Art.-Nr.: W050 140 030
For large-volume thermal management systems with the refrigerant R744
For the maintenance of thermal management systems in combustion, electric and hybrid vehicles. The COOLIUS C40 is therefore ideally suited for air conditioning service on vehicles with large-volume R744 thermal management systems, such as those installed in buses, commercial vehicles and rail vehicles.
Service-friendly components
Use of highquality and specially matched components for a long service life. Automatic maintenance notice.
CO2 concentration does not increase
An excessively high concentration of CO2 in the workshop is prevented. The refrigerant can easily be discharged outside or via the exhaust extraction system via the 15 m drain hose.
High accuracy
The three independent scales with a resolution of 1 g allow the safe and reliable handling of fresh oil, used oil and, if necessary, UV additive.
Data input via touchscreen
Overlaid safety instructions ensure simple and safe operation for the user.
Service makes the difference
We ofer practical (service) solutions and are on hand to answer your questions by phone - online or in person. From individual advice, country-specific services and maintenance to the expert hotline - you get everything from a single source.
Clever design
- 5 m service hoses
- Use of CO2 bottles up to 50 liters possible
- Simple and quick replacement of the CO2 bottle
- Two software-controlled heating tapes
| Description | Data |
|---|---|
| Dimensions | 920 x 590 x 1190 mm |
| Weight | 85 kg |
| Casing | Metal with robust plastic cover |
| Operating Power Supply | 230 V / 50 Hz |
| Operating temperature range | 0 / + 40°C |
| Refrigerant | R744 |
| CO2-cylinder compatibility | Up to 50 l |
| Refrigerant scale | 200 kg loadable |
| Max. operating pressure | 200 bar |
| Nitrogen / forming gas test | Automatic (Accessories required) |
| Old oil discharge | Automatic |
| Non condensable gas discharge | Automatic |
| Old oil bottle capacity - sealed | 500 ml |
| Oil / UV accuracy | ± 1 g |
| Refrigerant charge accuracy | ± 15 g |
| Vacuum pump capacity | 230 l/min |
| Final pressure (McLeod abs) | 0,05 mb |
| Extraction power | 300 g/min |
| Drain hose | 15 m |
| Electronic pressure sensors | Included |
| PAG / POE oil charge | Automatic |
| PAG / POE oil bottle capacity | 500 ml |
| UV additive bottle capacity standard | 500 ml |
| Refrigerant charge | Automatic |
| Convenient display | 7“ touch graphic screen |
| Acoustic signal | For errors and hints |
| Update of the vehicle data base | Via USB port |
| Set-up of own vehicle data base | Possible |
| Integrated printer | With multiple printout |
| High pressure and low pressure valves | Electronically controlled |
| Pressure gauge | Digital |
| Pressure gauge for refrigerant bottle pressure | Digital |
| Quick couplers | High and low pressure |
| Service hoses | 5 m |
| Service hoses compensation | Automatic |
| Certifications | CE-certification |
